Application

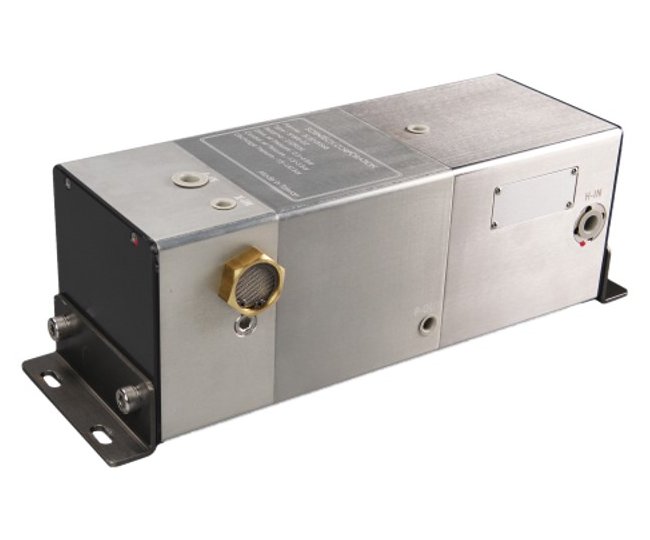

An equipment that transfers air pressure input into hydraulic pressure output.
The nozzle at the liquid output end produces spray and leads to excellent cleaning ability.
|
Specification | |||
|---|---|---|---|
|
Control pressure |
4 bar |
||
|
Maximum driving air pressure |
6 bar |
||
|
Suction rate |
12 cm3/stroke |
||
|
Output pressure |
25 ~ 150 bar | ||
|
Weight |
17 kg | ||
|
Output media |
DI water, IPA | ||
|
產品特色 |
1. Output pressure regulated by adjusting the pneumatic driving pressure. Operating range: 0.5 to 6 bar. 2. The operating frequency is determined by the nozzle diameter. 3. Simple operation with pneumatic-only drive system - no electrical power required. |
||
|
Note |
The system consists of two independent pressures: control air pressure maintains reciprocating motion, while driving pressure regulates output pressure. |
||
