Fuel Injection Pipe Cleaning System



Product Features and Highlights

Designed for various nozzles/Injection pipe:


✓ Suitable for turbine engines, nozzles, small-caliber fuel injection pipe, effectively resolving blockage issues.
✓ Comprehensive Cleaning: Combines ultrasonic vibration, high-pressure washing, and drying technologies.
✓ Automated Efficiency: Full automated program control, saves labor and time.
✓ Multi-industry applications: Nozzle cleaning equipment for automotive, aerospace, precision machinery,and other fields.

Dual Mode Operation Design

The equipment offers both automaticand manual operation modes for increased flexibility.



Main Function & Specification

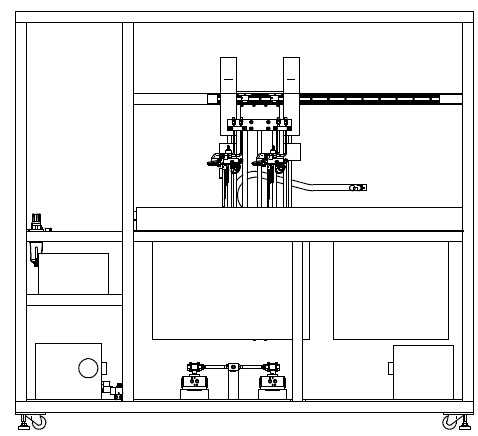

Model No.: KTEA12310A



 jpg





Specification

Cleaning Object Size  L × W × H : 530 x 376 x 300 mm

Consumables

Carbon removing cleaning solution, O-ring safe.

Equipment Components
  1. Cleaning Station ×1
  2. Cleaning Solution Tank ×1
  3. Spray Washing/Drying Tank ×1
    (Equipped with Ultrasonic Vibrator ×1and Heating System ×1)

System Parameters

◎ Cleaning Solution Pump：Flow Rate >20 L/min, Max Pressure 800 psi
◎ Water Pump：Flow Rate >16 L/min, Max Pressure 420 psi
◎ Full Electronic Control System：Smart monitoring ofof all valve operations to ensure stable operation.

System Requirements

【Power Requirements】: Three-phase 220V@30A,Single-phase 110V AC
【Input Air Pressure】: 160 psi
【Water Source】: Clean tap water

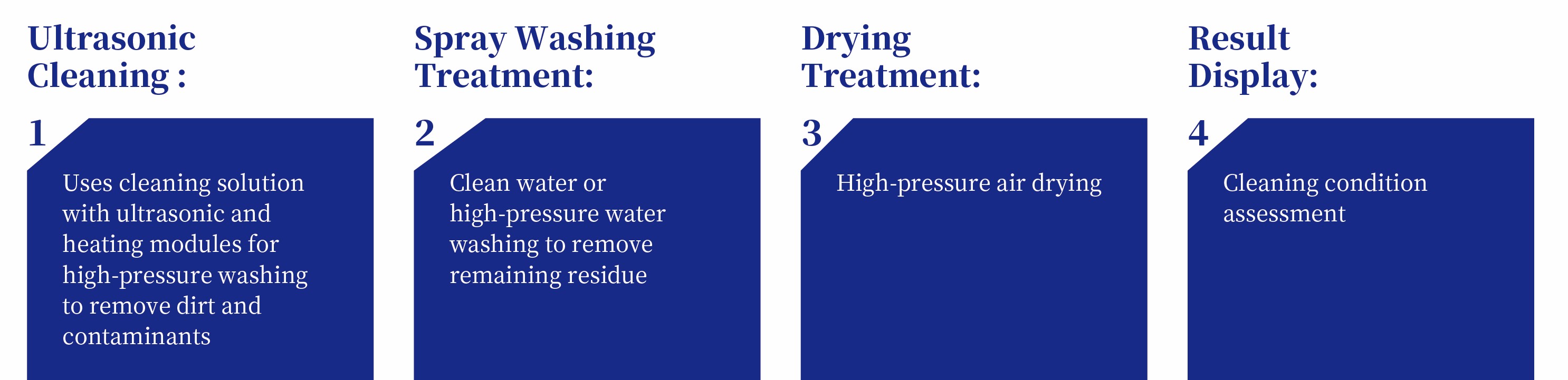

 Automatic Mode

 燃油噴桿清洗設備





 Manual Mode

  1. Ultrasonic Cleaning
  2. High-Pressure Washing
  3. Clean Water Rinse
  4. High-Pressure Air Drying
