Oil Flow Controller Test Bench

System OverviewThis test bench is specifically designed for testing the function of “Oil Flow Controller”.
The system can simulate actual operating conditions to ensure the reliability and accuracy of the flow controllers.

Main Function & Specification

Model No.: KTEA12310A

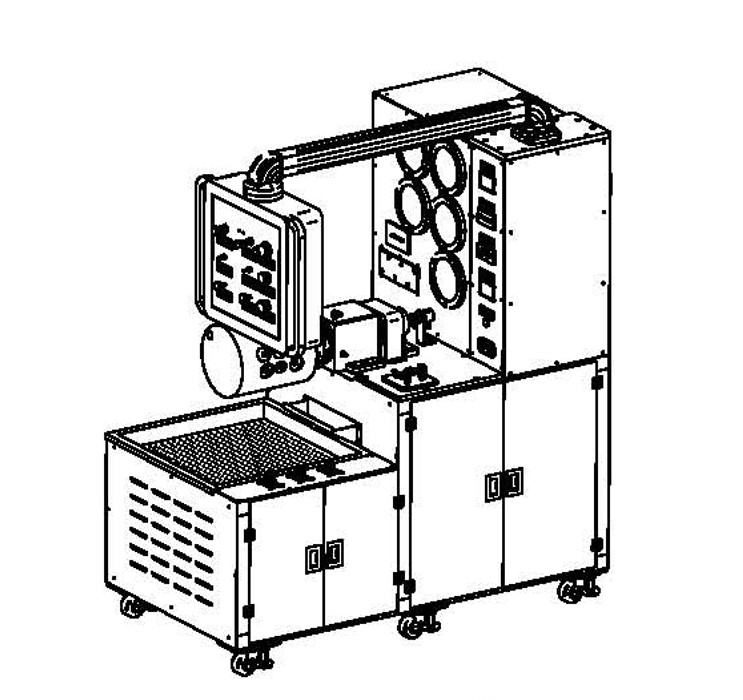

2025 06 18 134800

Specification
Drive System	Main Spindle Power: 7.5 HP motor (2-pole) Speed Range: 850-4000 rpm With digital display panel
Lubrication System	Flow Rate Range: 3.6-9 lb/hr With digital flow meter
Air Pressure Control System	Operation Mode: Positive pressure/ vacuum Positive Pressure : 0-30 psi, with precise control Vacuum Range: 2" to 29.9"Hg (1 atm = 29.9"Hg) With digital display panel
System Requirements	【Power Specification】: Three-phase 220V@30A 【Input Air Pressure】: 7 kg/cm² 【Port Specifications】: Fuel Inlet: MS33656-16 (Tube diameter 1 inch) Fuel Return: MS33656-16

Usage

控油器測試平台DM
