Application

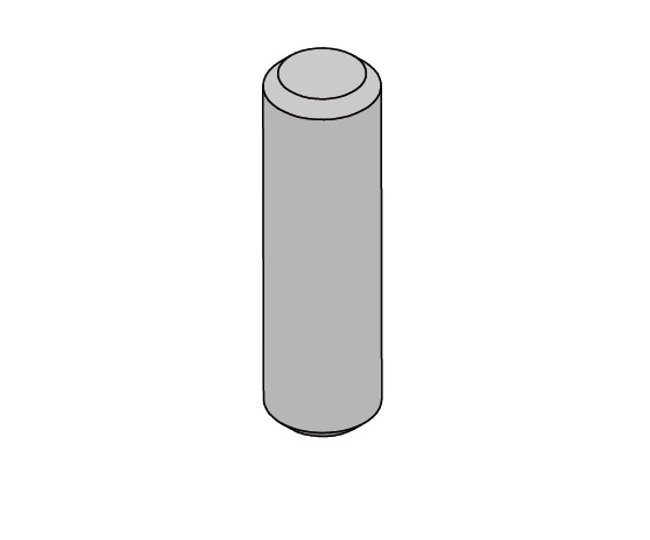

The table below details King Team's manufactured pins, designed for compatibility with international standard bearing models.
|
Model No. |
ØA |
L |
ØB |
H |
ØC |
Matched ball bearing |
|---|---|---|---|---|---|---|
|
KTP-620-4-15SS |
6.35-0.01 |
15 |
5.8-0.1 |
0.8+0.1 |
8 |
MS14104-4 |
|
KTP-620-4-33SS |
6.35-0.01 |
33 |
5.8-0.1 |
0.8+0.1 |
8 |
MS14104-4 |
|
KTP-620-5-29SS |
7.92-0.015 |
29 |
7.4-0.1 |
0.9+0.1 |
10 |
MS14104-5 |
|
KTP-620-5-36SS |
7.92-0.015 |
36 |
7.4-0.1 |
0.9+0.1 |
10 |
MS14104-5 |
|
KTP-620-5-49SS |
7.92-0.015 |
49 |
7.4-0.1 |
0.9+0.1 |
10 |
MS14104-5 |
|
KTP-620-5-61SS |
7.92-0.015 |
61 |
7.4-0.1 |
0.9+0.1 |
10 |
MS14104-5 |
|
KTP-620-6-40SS |
9.52-0.015 |
40 |
8.6-0.1 |
1.15+0.1 |
11 |
MS14104-6 |
|
KTP-620-7-50SS |
11.1-0.02 |
50 |
10.5-0.11 |
1.15+0.14 |
12 |
MS14104-7 |
|
KTP-620-8-41SS |
12.7-0.02 |
41 |
11.5-0.11 |
1.15+0.14 |
14 |
MS14104-8 |
|
KTP-620-8-55SS |
12.7-0.02 |
55 |
11.5-0.11 |
1.15+0.14 |
14 |
MS14104-8 |
|
KTP-620-9-42SS |
14.275-0.011 |
42 |
13.4-0.11 |
1.15+0.14 |
16 |
MS14104-9 |
|
KTP-620-12-70SS |
19.037-0.013 |
70 |
18-0.11 |
1.35+0.14 |
21 |
MS14104-12 |
|
Note:
|
||||||
