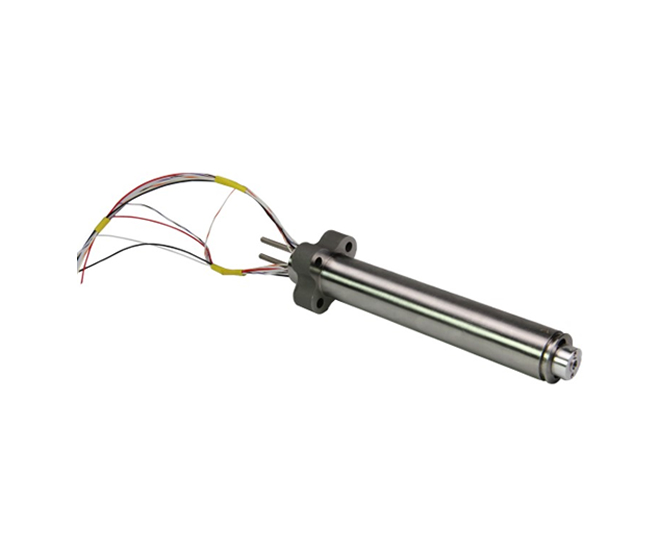

Linear Variable Differential Transformer(LVDT)

product05

Application

LVDT is widely used in situations where high-precision displacement measurement is required. It replaces traditional potentiometers and is used in various industries.



Specification

Dimension

84mm Dual Axis LVDT

Primary side excitation voltage

7 Vrms@3.2 kHz

Stroke

≧ ± 42 mm

Linearity

± 1 %

Origin output

≦ 0.05 Vrms

Secondary side output voltage

2.5 Vrms / 25.4 mm

Insulation resistance

> 1 MΩ

Voltage difference between two axis

< 0.3 VDC

Features
  1. Small size
  2. Long service life
  3. High tolerance, no need to worry about temperature changes affecting product performance
  4. High resolution
  5. Good linearity
  6. Stable output signal
  7. Strong anti-interference ability



* In addition, King Team has a variety of specifications and models for selection. If you have any needs, please write or call us
